Plates Available for Inverted, Stereo, Upright Microscopes.

Ensures more accurate and more reliable thermal control of the specimens during observation under a microscope.

Wide product range supports the IVF market.

Inverted

TPi-110RX

Glass Plate for Olympus IX series Cross stage with φ110mm opening

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 60℃

Support Microscope Brand / Stage [Required Adapter]

Controller：TPi

Required Controller

Dimensions：

W85×D135×H30 mm

Weight：

170 g

Maximum power consumption：

50W

Components

Heating plate

Controller

External temperature sensor【SENSOR-TP16】

Sensor extension wire【EXTD-TP16】

Software【TEM】

USB cable

AC adapter

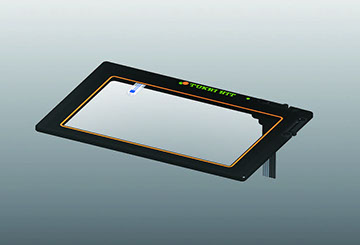

TPi-TCSX

Glass Plate for Nikon Ti2/TS2R XY manual stage＜TC-S-SR/SRF＞

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 60℃

Support Microscope Brand / Stage [Required Adapter]

Required Controller

• CONTROLLER TPi

  Controller：TPi



  Dimensions：

  W85×D135×H30 mm

  Weight：

  170 g

  Maximum power consumption：

  50W

• COMPONENTS

  Components

  Heating plate



  Controller



  External temperature sensor【SENSOR-TP16】



  Sensor extension wire【EXTD-TP16】



  Software【TEM】



  USB cable



  AC adapter

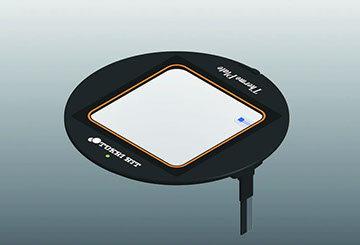

TPi-108RX

Glass Plate for Nikon Ti2/Ti/TE2000 Rectangular stage with φ108mm opening

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 60℃

Dimensions：φ108 mm

Heating area：W70×D70 mm

Glass thickness：0.5 mm

Support Microscope Brand / Stage [Required Adapter]

Required Controller

• CONTROLLER TPi

  Controller：TPi



  Dimensions：

  W85×D135×H30 mm

  Weight：

  170 g

  Maximum power consumption：

  50W

• COMPONENTS

  Components

  Heating plate



  Controller



  External temperature sensor【SENSOR-TP16】



  Sensor extension wire【EXTD-TP16】



  Software【TEM】



  USB cable



  AC adapter



Stereo

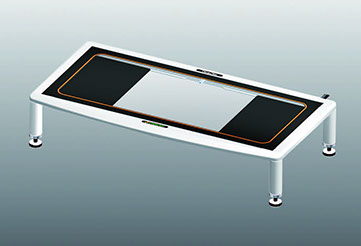

TPi-UNIX

Glass Plate for stereo microscopes（Universal type）

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 50℃

Dimensions：W435×D220 mm

Heating area：W400×D175 mm

Glass thickness：1.5 mm

Leg adjustable range：75～100 mm

Support Microscope Brand / Stage [Required Adapter]

Required Controller

• CONTROLLER TPi

  Controller：TPi



  Dimensions：

  W85×D135×H30 mm

  Weight：

  170 g

  Maximum power consumption：

  50W

• COMPONENTS

  Components

  Heating plate



  Controller



  External temperature sensor【SENSOR-TP16】



  Sensor extension wire【EXTD-TP16】



  Software【TEM】



  USB cable



  AC adapter



TPi-SZX2X

Glass Plate for Olympus SZX16/10 SZX2-ILLB/ILLD/ILLK/ILLT/ILLTQ/ILLTS

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 60℃

Dimensions：W222×D226 mm

Heating area：W162×D152 mm

Glass thickness：1.0 mm

Support Microscope Brand / Stage [Required Adapter]

Required Controller

• CONTROLLER TPi

  Controller：TPi



  Dimensions：

  W85×D135×H30 mm

  Weight：

  170 g

  Maximum power consumption：

  50W

• COMPONENTS

  Components

  Heating plate



  Controller



  External temperature sensor【SENSOR-TP16】



  Sensor extension wire【EXTD-TP16】



  Software【TEM】



  USB cable



  AC adapter

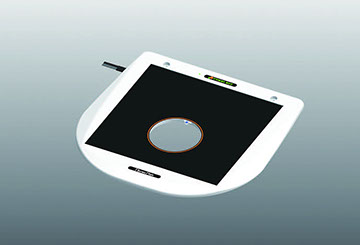

TPi-SMZ25X

Glass Plate for Nikon SMZ25/18/1270 P2-PB/DBL/DBF, P-DSL32/DSF32

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 60℃

Dimensions：W251×D238 mm

Heating area：W185×D175 mm

Glass thickness：1.0 mm

Support Microscope Brand / Stage [Required Adapter]

Required Controller

• CONTROLLER TPi

  Controller：TPi



  Dimensions：

  W85×D135×H30 mm

  Weight：

  170 g

  Maximum power consumption：

  50W

• COMPONENTS

  Components

  Heating plate



  Controller



  External temperature sensor【SENSOR-TP16】



  Sensor extension wire【EXTD-TP16】



  Software【TEM】



  USB cable



  AC adapter



Upright

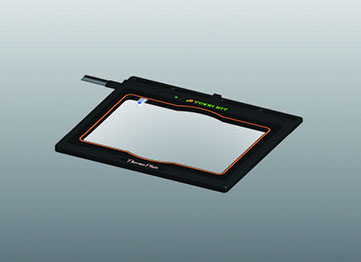

TPi-SX

Glass Plate for upright microscopes XY mechanical stage

Universal for: Nikon, Olympus, Leica & Zeiss

・10 year free-repair service for glass breakage（Applied harden glass）

・With Plate LED Indicator

・Temp. setting range：Ambient – 60℃

Dimensions：W142×D115 mm

Heating area：W128×D95 mm

Glass thickness：0.5 mm

Support Microscope Brand / Stage [Required Adapter]

Required Controller

• CONTROLLER TPi

  Controller：TPi



  Dimensions：

  W85×D135×H30 mm

  Weight：

  170 g

  Maximum power consumption：

  50W

• COMPONENTS

  Components

  Heating plate



  Controller



  External temperature sensor【SENSOR-TP16】



  Sensor extension wire【EXTD-TP16】



  Software【TEM】



  USB cable



  AC adapter
