Incubators
<
>
C-Top
Benchtop incubator for up to date,
individual cell cultivation
DESCRIPTION
Advantages of Labo C-Top:
Approved medical device
Two independent and separate incubation chambers;
Parameters (gas flow, temperature) can be adjusted individually
Optimized gassing with premixed gas
Optimized temperature distribution by double heated chamber from top and bottom;
Very fast heating up and recovery times
Reliable humidity system;
Current value of relative humidity is displayed (% rH)
Convenient glass control panel
Space saving
FEATURES
Incubation chambers
Aluminum milled and eloxated
In the lower part:
Slots provide full contact to culture dishes
Adaption for humidity block
Gas inlet
Easy cleaning
Independent, for use with (per chamber):
4 x IVF 4-well dishes 66x66 mm
4 x Petri dishes Ø 60 mm
10 x Petri dishes Ø 35 mm
Temperature
Overall heating from top and bottom
Very homogeneous temperature distribution
Humidity
Humidification by means of humidity block
Reservoir sufficient for 4 days (when gassing with 20 ml/min)
Humidity block autoclavable
Humidity alarm disengageable
Current value of relative humidity is displayed (% rH)
Gassing
Connection of premixed gas (CO2, O2 < 21 %, N2)
Separate measuring and regulation of gas flow for each chamber
Automatic gas purge when closing the chamber
Recovery times
Short recovery times for all parameters through microprocessor controlled regulation
Use of glass panel
Homogeneous glass cover
Sensoric buttons integrated in glass
Image of placements for marking inserted dishes at the glass cover
Easy operation and menu navigation
Lit LCD at working place height
Trouble check system
Optical and acoustic alarm in case of set point deviation or defective sensor
Independent over-temperature protection
Remote alarm
Options
PC software LaboDat+ for documentation of incubator’s parameters
Second gas inlet for use of different gas mixtures for each chamber
Lockable lids
Interfaces
Remote alarm (potential free)
RS485-interface for data logging with optional available PC software LaboDat+
SPECIFICATIONS
Exterior
Dimensions 403 x 225 x 155 mm (w x d x h)
Weight 8.8 kg
Interior
Two chambers with 0.5 liters each
Mixed load possible
Temperature
Overall heating from top and bottom of each chamber
Range 30 °C - 42 °C from 7 °C above
ambient temperature
Stability / uniformity ± 0.1 °C / ± 0.3 °C
Gassing
Premixed gas
Gas flow adjustable between 20 ml/min and 30 ml/min
Flow rate after opening the lid (automatic gas purge):
250 ml/min for 3 minutes
Power Supply
110 – 230 V AC, 50/60 Hz, 100 VA
Primary pressure for gas 0.8 bar
Ambient temperature 18 °C - 30 °C
Classification
Safety class II
Class IIa for every usage according to EC-Directive 93/42/EEC
EN 61010 conform
<
>
C16 Incubator
Incubator with an inner volume of 16 liters
DESCRIPTION
Advantages of C60:
Approved medical device
Active sterile humidity:
External water reservoir
Distilled water is vaporized at 120 °C
Minimized risk of contamination
Humidity sensor (rH)
Very fast recovery
CO2 sensor:
Dual beam infrared sensor
Very precise measurement
Very fast recovery
Long-term stable
Direct heating:
Independent six-sided direct heating
Homogeneous temperature distribution in incubation chamber
Very fast recovery
Optional:
O2-control
Subdivided inner glass door with 4 small doors
Lockable front door
Access port
PC software LaboDat+
SPECIFICATIONS
Exterior Dimensions 510 x 540 x 720 mm (w x d x h)
Interior Chamber volume 60 l
Electro-polished stainless steel
Shelves height adjustable
Temperature Panel heated interior chamber and door
Range 27-42 °C starting 5 °C above ambient temperature
Stability / uniformity ±0.1 °C / ±0.3 °C
Over-temperature alarm 32-47 °C
CO2 control Dual beam infrared sensor
Range 0–10 % CO2
Stability ±0.1 % CO2
O2 control < 21 % (optional) Measurement with galvanic sensor
Connection of N2
Adjustable range 1–21 % O2
Humidity Active sterile humidity generated by vaporizing module at 120 °C
Measuring range 0–98 % rH / range 60–95 % rH
Supply 230 V AC, 50/60 Hz or 115 V AC, 50/60 Hz, 160 W
Inlet pressure for gas 0.8 bar
Ambient temperature 18-30 °C
Classification
Safety class I
Class IIa for all usage according to EC-Directive 93/42/EE
Conform to ENN 61010
FEATURES
Interior
Electro-polished stainless steel with coved corners
Shelves and ductwork easily removable for cleaning purposes
Temperature Panel heated interior chamber and door
Humidity supply
Internal water reservoir
CO₂
Dual beam infrared sensor
Measurements independent from temperature and humidity
Very short recovery times
For all adjustable parameters through optimized microprocessor control
Easy Handling
Menu guided
Backlit LCD display
Foil keypad
Diagnostic system
Optical and acoustical alarm if set point deviation or sensor defect occurs
Door monitoring
Air monitoring
Hardware self-test
Remote alarm
Options
O₂ control: connection for N₂
Interfaces
Remote alarm (potential free)
RS485-interface for data-logging with optional PC software LaboDat+
<
>
C60 Incubator
Incubator with an inner volume of 60 liters
DESCRIPTION
Advantages of C60:
Approved medical device
Active sterile humidity:
External water reservoir
Distilled water is vaporized at 120 °C
Minimized risk of contamination
Humidity sensor (rH)
Very fast recovery
CO2 sensor:
Dual beam infrared sensor
Very precise measurement
Very fast recovery
Long-term stable
Direct heating:
Independent six-sided direct heating
Homogeneous temperature distribution in incubation chamber
Very fast recovery
Optional:
O2-control
Subdivided inner glass door with 4 small doors
Lockable front door
Access port
PC software LaboDat+
FEATURES
Interior
Electro-polished stainless steel with coved corners
No tools required for quick assembly and disassembly of interior
Temperature
Panel heated chamber and door
Intelligent temperature control system avoids condensation in inner chamber
Active sterile Humidity supply
External water supply container
CO2 control
Dual beam infrared sensor
Measurement independent from temperature and humidity
Fast recovery
For all adjustable parameters through optimized microprocessor control
Easy handling
Menu guided
Large, backlit LCD
Foil keyboard
Diagnostic system Visual and acoustic alarm if set point deviation or sensor defect occurs
Door monitoring
Remote alarm
Options
O2 control: connection of N2
Subdivided inner glass door with 4 small doors
Lockable front door
Access port Ø 30 mm
Interfaces
Alarm contact (potential free)
RS485 interface for connection of optional available PC software LaboDat+
SPECIFICATIONS
Exterior Dimensions 510 x 540 x 720 mm (w x d x h)
Interior Chamber volume 60 l
Electro-polished stainless steel
Shelves height adjustable
Temperature Panel heated interior chamber and door
Range 27-42 °C starting 5 °C above ambient temperature
Stability / uniformity ±0.1 °C / ±0.3 °C
Over-temperature alarm 32-47 °C
CO2 control Dual beam infrared sensor
Range 0–10 % CO2
Stability ±0.1 % CO2
O2 control < 21 % (optional) Measurement with galvanic sensor
Connection of N2
Adjustable range 1–21 % O2
Humidity Active sterile humidity generated by vaporizing module at 120 °C
Measuring range 0–98 % rH / range 60–95 % rH
Supply 230 V AC, 50/60 Hz or 115 V AC, 50/60 Hz, 160 W
Inlet pressure for gas 0.8 bar
Ambient temperature 18-30 °C
Classification
Safety class I
Class IIa for all usage according to EC-Directive 93/42/EE
Conform to ENN 61010
<
>
C200
Incubator with an inner volume of 200 liters
DESCRIPTION
Advantages of C200:
Approved medical device
Active sterile humidity:
External water reservoir
Disteilled water is vaporized at 120 °C
Minimized risk of contamination
Humidity sensor (rH)
Very fast recovery
CO2 sensor:
Dual beam infrared sensor
Very precise measurement
Very fast recovery
Long-term stable
Direct heating:
Independent six-sided direct heating
Homogeneous temperature distribution in incubation chamber
Very fast recovery
Optional:
O2 control
Subdivided inner glass door with 6 small doors
Lockable front door
Access port
PC software LaboDat+
FEATURES
Interior
Electro-polished stainless steel with coved corners
No tools required for quick disassembly and assembly of interior components
Temperature
Panel heated chamber and door
Intelligent temperature control system avoids condensation in inner chamber
Active sterile Humidity supply
External water supply container
CO2 control
Dual beam infrared sensor
Measurement independent from temperature and humidity
Fast recovery
For all adjustable parameters through optimized microprocessor control
Easy handling
Menu guided
Large, backlit LCD
Foil keyboard
Diagnostic system
Optical and acoustic alarm if set point deviation or sensor defect occurs
Door monitoring
Remote alarm
Options
O2 control: connection for N2 possible
Subdivided inner glass door with 6 small doors
Lockable front door
Access port Ø 30 mm
Interfaces
Remote alarm (potential free)
RS485 interface for connection of optional available PC software LaboDat+
SPECIFICATIONS
Exterior Dimensions 680 x 690 x 930 mm (w x d x h)
Interior Chamber volume 200 l
Electro-polished stainless steel
Shelves height adjustable
Temperature Panel heated interior chamber and door
Range 27-42 °C starting 5 °C above ambient temperature
Stability / uniformity ±0.1 °C / 0.3 °C
Over-temperature alarm 32-47 °C
CO2 control Dual beam infrared sensor
Range 0–10 % CO2
Stability ±0.1 % CO2
O2 control < 21 % (optional) Measurement with galvanic sensor
Connection of N2
Adjustable range 1–21 % O2
Humidity Active sterile humidity generated by vaporizing module operating at 120 °C
Measuring range 0–98 % rH / adjustable range 60–95 % rH
Supply 230 V AC, 50/60 Hz or 115 V AC, 50/60 Hz, 200 W
Inlet pressure 0.8 bar
Ambient temperature 18-30 °C
Classification Safety class I
Class IIa for all usage according to EC-Directive 93/42/EEC
Conform to EN 61010
<
>

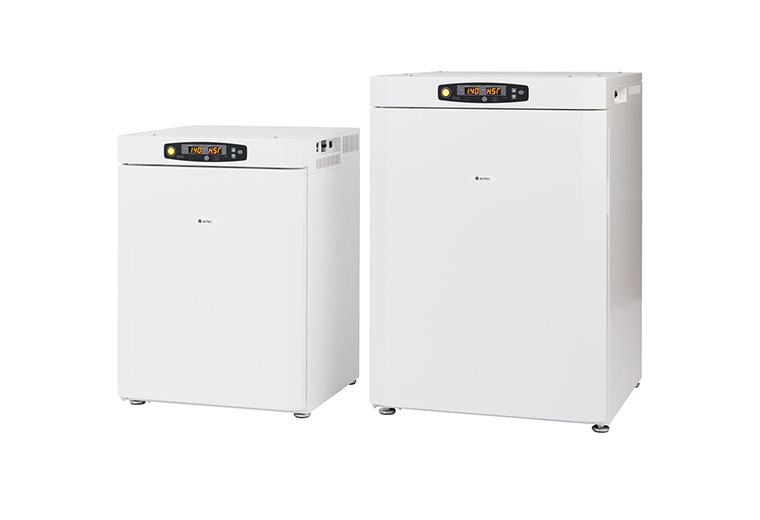

PENGUIN BOX INCUBATOR
Most versatile, box incubator line on the market
DESCRIPTION
Whether you prefer Water Jacketed or Direct Heat, we have you covered with this Penguin Box series of incubators. Various sizes include 30L, 50L, 80L, 160L. Long-trusted performance since the early 90’s, the incubators provide the most accurate and stable cell-culturing environment for temperature, gas levels and humidity.
SPECIFICATIONS
<
>

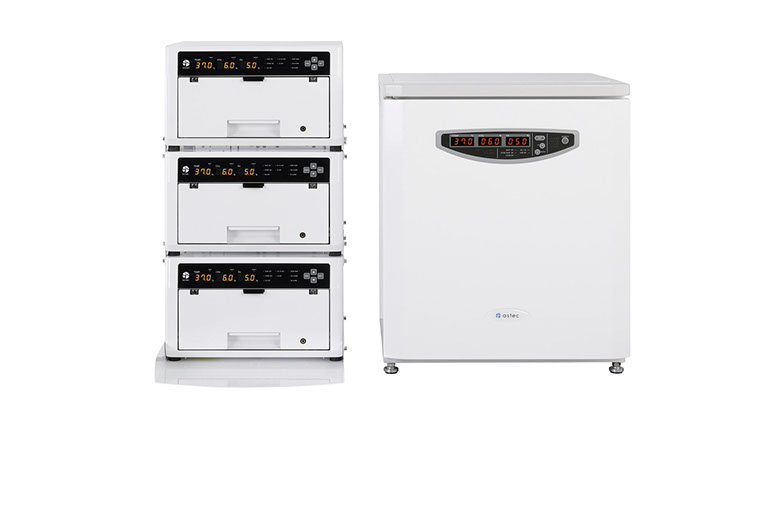

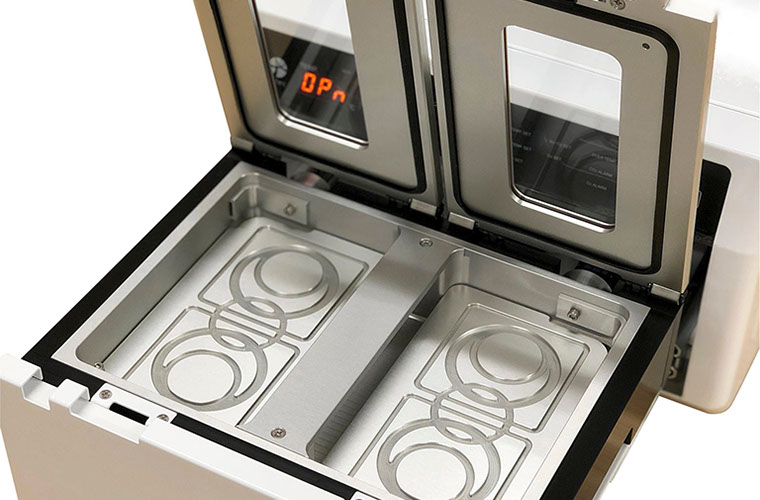

SD830 MINI CUBE
Open the "Drawer" to new possibilities
DESCRIPTION
Inspired by the “CUBE”, the SD-830 is more compact, affordable and convenient to use. the SD-830 can also be used as a Dry or Humidified incubation unit. Heated from the Top & Bottom of the chamber, the SD-830 promises a stable and well protected environment to preserve/recuperate the temperature inside its chamber. These are also made to stack, up to three high, saving you space in your lab.
SPECIFICATIONS
<
>

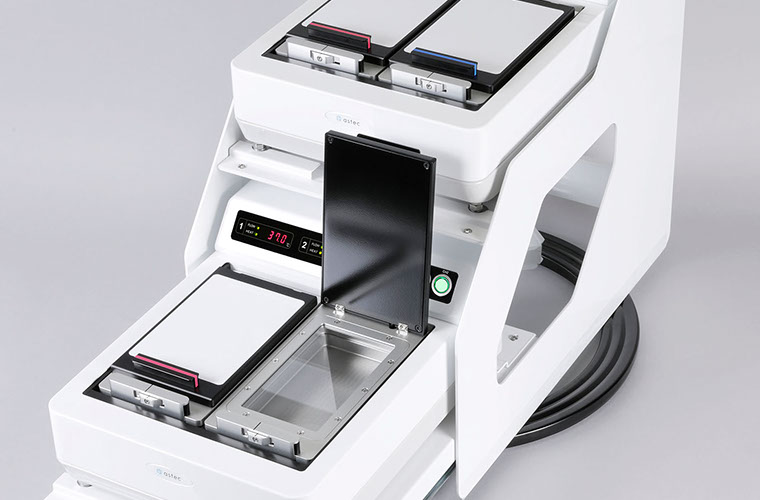

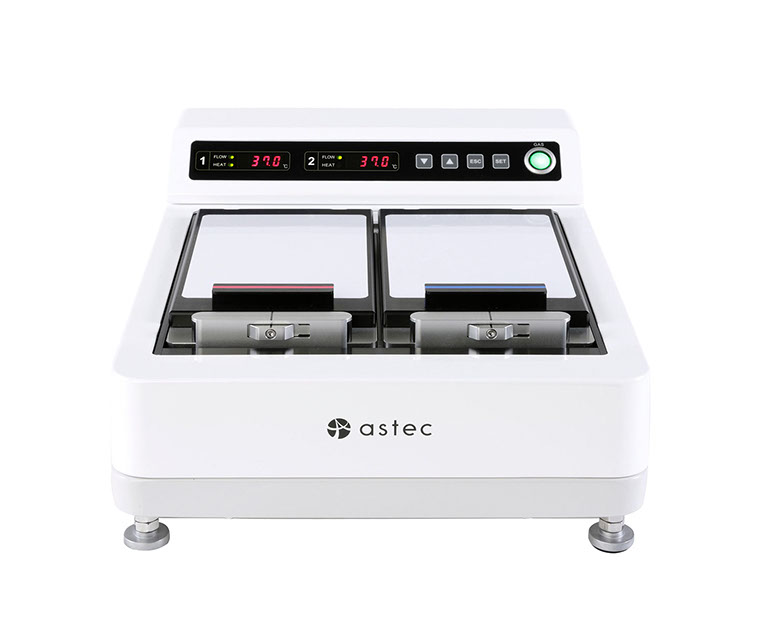

MINI BENCHTOP
MINI maximizes your lab
DESCRIPTION
The MINI provides more versatility with its size and compatibility with the requirements for a successful cell culture. Each chamber is designed for both dry and humidified incubation. Maintain the same small footprint by stacking the MINI.
SPECIFICATIONS
