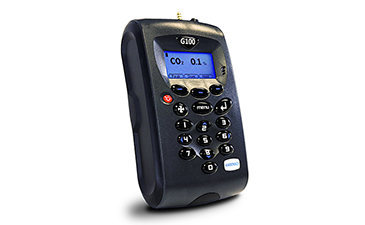

VIASENSOR G100

QED Viasensor G100 analyzer is specifically designed to monitor CO2 for the verification of incubators in IVF, medical, research and other pharmaceutical markets. This unit has been developed to incorporate the latest technology and specifications requirements, that provide the user with a fast, simple-to-use and accurate piece of laboratory kit.

  • BENEFITS

    Benefits

    Improved accuracy on CO2

    Quick verification of CO2 incubator levels

    Time saving with dual temperature probes

    Easy to read large well-lit display

    Calibrated to ISO/IEC 17025

    Built in gas moisture removal

    Local support and calibration/repair facility centrally located in Dexter, Michigan

  • KEY SPECIFICATIONS

    The G100 CO2 analyzer was specifically designed to monitor carbon dioxide for the verification of incubators in IVF, medical research and pharmaceutical markets. This analyzer is utilized by embryologists, lab technicians, scientists and stem cell researchers.



    Key Specifications

    Measures CO2 0-20%

    Available with option to measure O2 (0-100%)

    Dual temperature probes 32°F – 122°F (0-50C)

    Humidity probe (0-100%)

    Data storage and download capabilities with ADM Software purchase

    Easy user calibration for improved accuracy

    Self-test and self-monitoring on start up

    Lightweight, portable analyzer for ease of use in laboratory

Greisinger GMH 3231 Digital Thermometer

The Greisinger GMH 3231 is a Digital Precision Quick-Response Thermometer for Thermocouples. This Thermometer is able to use five different thermocouples, (types J, K, N, S, T). The connection is via miniature thermocouple connector. The two-line display, keypad and dust-tight enclosure allow a user-friendly and reliable operation.



The thermometer is suitable for all quick-response, high-precision temperature measurements.





  • PRODUCT INFORMATION

    Freely programmable analogue output 0 to 1V or serial interface

    Connection 5 different thermocouples (type J, K, N, S, T)

    Temperature display in °C or °F (optional)

    Possibility to correct the measured value when measuring surface temperature

    Serial Interface

    Minimum and maximum memory of measured values, HOLD function

    The possibility of entering the zero point correction

    Operation from battery or AC adaptor

    Low power consumption 1.6mA

    Battery life: 1000 hours with a standard 9V battery (included)

    Probes not included

    Input: 2

    Manufacturer's part: Greisinger GMH 3230

Labotect InControl

Measuring Device, InControl 1050, InControl

  • DESCRIPTION

    Independent measuring device for control and evaluation of CO2, temperature and O2

  • FEATURES

    Accurate measuring of CO2, temperature and optional O2

    Single or continuous measurement in arbitrary intervals

    Measurement and documentation of multiple incubators

    Documentation of measurements with date, time and incubator number

    Easy menu navigation

    Data-Download via USB; PC software DataVISUAL`09 incl.

    Continuous operation by Li-Ion battery or mains adapter possible

  • SPECIFICATIONS

    Case Plastic (ABS)

    CO2 measurement Dual beam infrared sensor

    Range: 0 - 10 % CO2

    Display definition: 0.1 % CO2

    Accuracy:

    0 - 6 % CO2 ± 0.2 % CO2

    6 % - 10 % CO2 ± 0.3 % CO2

    Sample volume per measurement (2 min.): approx. 0.8 l

    Temperature measurement Platinum temperature sensor PT1000

    Range: 0 - 100 °C

    Display definition: 0.1 °C

    Accuracy:

    20 °C - 50 °C ± 0.2 °C

    50 °C - 100 °C ± 0.3 °C

    O2 measurement Galvanic sensor

    Range: 0 - 100 % O2

    Display definition: 0.1 % O2

    O2 sensor not included

    Data logger



    Recording of measurement logging in arbitrary intervals

    Output of measurements via:

    backlit LCD

    PC software Data Visual’09 (via USB data cable)

    Interval for data logging: 15 - 120 min., adjustable in steps of 5 min.

    Storage of max. 1008 measurements with date and time

    Power supply Rechargeable Li-Ion battery

    Power supply 100 – 240 V AC, 5 V DC 1.5 A

    Operation time Use of rechargeable battery approx. 4 h

    Time to recharge battery approx. 4 h

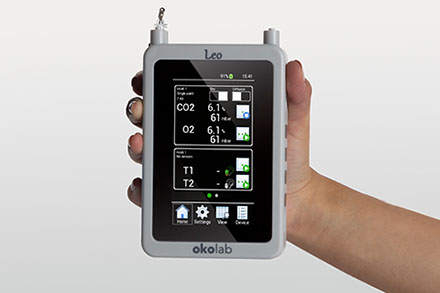

OKO Lab- LEO

LEO is a hand-held meter for IVF application. It allows measurement of CO2-O2 gas composition, temperature, relative humidity, and gas flow of high-top and bench-top incubators, by using multiple sensor modules.
